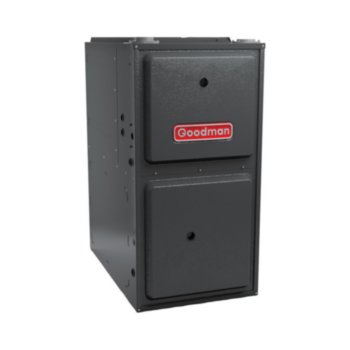

Goodman GM9S96 Gas Furnace

The Goodman GM9S96 is a single-stage, multi-speed gas furnace rated up to 96% AFUE, built for upflow and horizontal installation. It is a straightforward, well-priced high-efficiency replacement for an older mid-efficiency furnace.

Product Features

• Up to 96% AFUE — roughly 96 cents of every fuel dollar becomes heat
• Single-stage heating with a multi-speed ECM blower motor, which draws less electricity than a standard PSC motor
• Aluminized-steel tubular primary heat exchanger with a secondary heat exchanger to capture flue heat
• Steel cabinet rated at less than 2% air leakage, with a foil-lined heat-exchanger section and a solid, airtight return
• Self-diagnostic control board with fault-code history
• Provisions for an electronic air cleaner and a 120-volt or 24-volt humidifier

Specifications at a Glance

• Efficiency: up to 96% AFUE
• Heating stages: single-stage
• Blower: multi-speed ECM
• Heating input range: 40,000 – 120,000 BTU/h
• Orientation: upflow or horizontal
• Venting: PVC (condensing furnace)
• Warranty: 10-year unit replacement and 10-year parts limited warranty when the unit is registered online within 60 days of installation; heat-exchanger coverage is extended on registration. Unregistered units fall back to the standard shorter term — we register yours for you.

Is the GM9S96 Right for Your Home?

Single-stage operation means the burner runs at one output level. It is the simpler, lower-cost option, and paired with the multi-speed ECM blower it still holds temperature well and runs far more efficiently than the mid-efficiency furnace it usually replaces. It suits homes where the budget matters most and the existing ductwork and layout are already working well.

Getting the Size Right

A furnace that is too large short-cycles, wears itself out and leaves uneven temperatures room to room. We size every replacement from a heat-loss calculation on your actual home — square footage, insulation, window area and orientation — instead of matching whatever was there before. Ask about current BC rebates before you decide; they can change which system makes financial sense.

Frequently Asked Questions

What does 96% AFUE actually mean?

AFUE is the share of fuel energy that becomes usable heat over a full heating season. At 96% AFUE, about 96 cents of every dollar of gas heats your home and roughly four cents goes up the vent. An older mid-efficiency furnace often runs closer to 60–80%.

Can the GM9S96 replace my existing furnace directly?

Often yes, but not always. As a condensing furnace it needs PVC venting and a condensate drain, which an older chimney-vented furnace does not have. We confirm venting and drainage during the estimate.

Single-stage or two-stage — which should I choose?

If you want the lowest installed cost, single-stage is the sensible pick. If even room temperatures and quieter running matter more, look at the two-stage GM9C96.

Big Valley Heating & Sheet Metal installs this furnace across Maple Ridge, Pitt Meadows, Coquitlam, Port Moody, Anmore and the wider Fraser Valley. Because it is a condensing furnace, it vents through PVC rather than a traditional chimney, which affects where it can go in your home — something we confirm during the site visit, not after.

Ask Us About the GM9S96

We will tell you plainly whether this furnace suits your home or whether something else fits better. Request a free estimate, browse the rest of our equipment library, or read more about our heating services in the Fraser Valley.
